The Flexible LED Display screen is made of soft modules that can turn into unique shapes, breaking the bottleneck of the traditional LED screen in form, and it can be arbitrarily spliced into various irregular shapes to display creative content as needed.
Pixel Pitch: 1.25mm / 1.579mm / 1.667mm / 1.875mm / 2mm / 2.5mm / 3mm / 4mm
Get A Quotation
Easy Magnetic Connection
Ultra Thin ≤ 12 mm
Ultra Light ≤ 85 g /Module
High Quality: 10000 times Bending Tests
Our creative LED display can be customized to show various shapes according to the overall structure and environment of the project. By using a creative display, your advertisement can not only attract the audience's eye firstly to achieve better publicity but also leave a deep impact on potential customers with creative content and fancy display.
Its size can be customized according to the site requirements to deliver a smooth image with great flatness.
Super flexibility to generate creative shapes, including curved, diamond, spherical, bucket arch, cube, cylinder and more.
After special treatment, the display unit can be assembled into an inner arc display surface shape, an outer arc display surface shape,an inner circular display surface shape, an S display surface shape, a spherical shape and the like, which is what a conventional display can not achieve.
Rainbow
S Shape
Wave
Waterfall
Sphere
Triangle
Stage

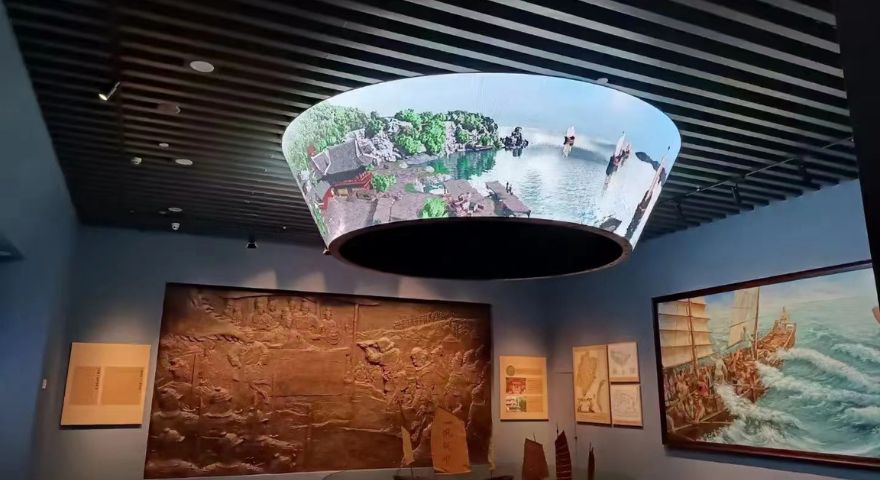

Museum

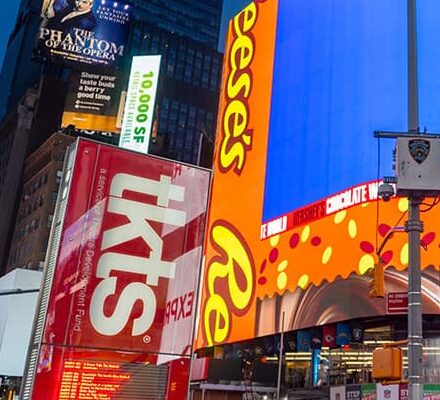

Shopping Mall

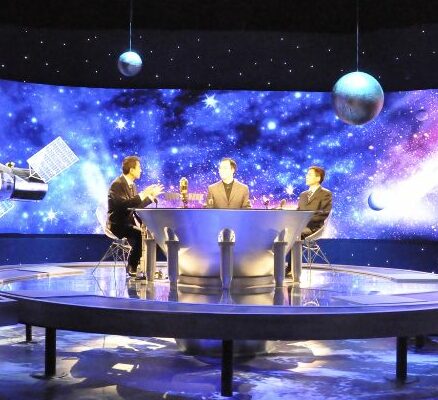

TV Station

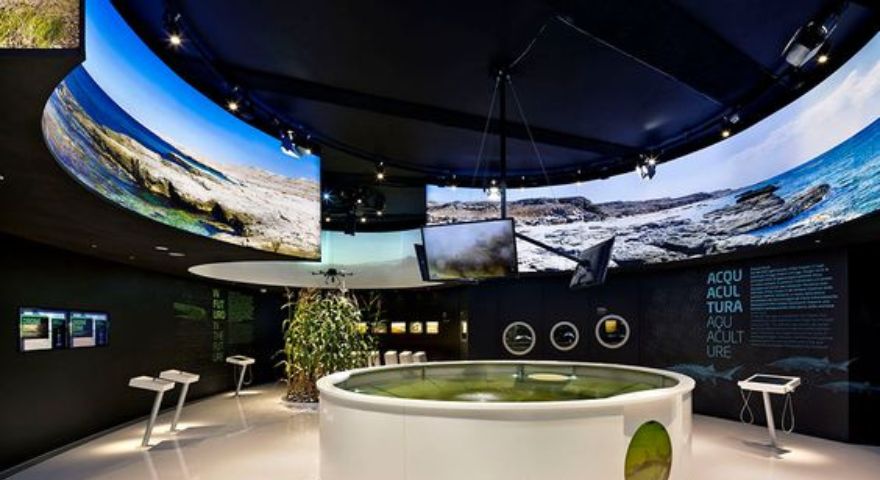

Hotel

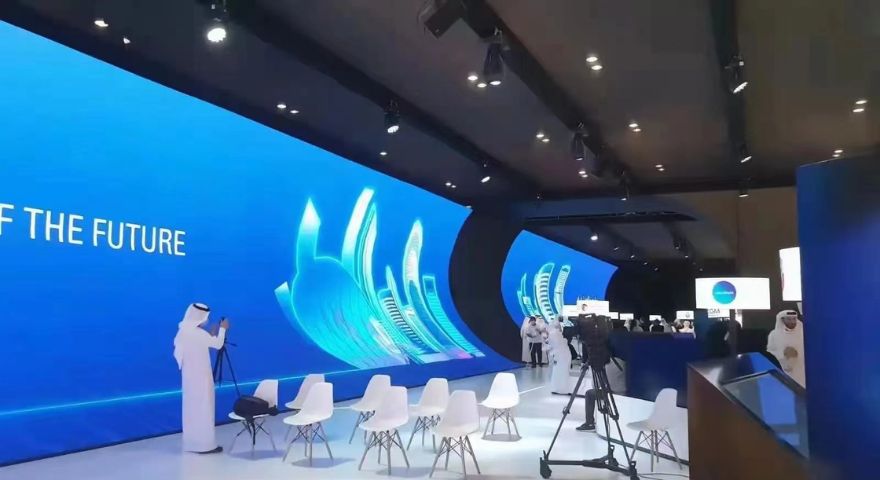

Exhibition Hall
We always have been driven by our customers' demand. We put user experience first in designing LED screens, providing professional project solutions, and exploring the most cutting-edge design concepts and technologies to support your business and projects.
| Technical Specifications | P1.25 | P1.579 | P1.667 | P1.875 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch | 1.25mm | 1.579mm | 1.667mm | 1.875mm | 2mm | 2.5mm | 3mm | 4mm |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Module Size | 240*120mm | 240*120mm | 240*120mm | 240*120mm | 240*120mm | 240*120mm | 240*120mm | 240*120mm |
| Module Resolution | 192*96dots | 152*76dots | 144*72dots | 128*64dots | 120*60dots | 96*48dots | 80*40dots | 60*30dots |
| Pixel Resolution | 640,000dots/m2 | 401,111dots/m2 | 360,000dots/m2 | 284,444dots/m2 | 250,000dots/m2 | 160,000dots/m2 | 111,111dots/m2 | 62,500dots/m2 |
| Cabinet Size | Customized | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
| Weight/sqm | 28kg | 28kg | 28kg | 28kg | 28kg | 28kg | 28kg | 28kg |
| Average Comfortable Viewing Distance | 1m | 1.5m | 1.6m | 3.23m | 3.44m | 4.3m | 5.16m | 6.88m |
| Brightness | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 |
| View Angle | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) |
| Refresh Rate | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥1,920HZ |
| Input Voltage | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% |
| Max.power Consumption | ≤552W/m² | ≤380W/m² | ≤380W/m² | ≤431W/m² | ≤431W/m² | ≤380W/m² | ≤396W/m² | ≤431W/m² |
| Avg. Power Consumption | 157W/m² | 108W/m² | 108W/m² | 123W/m² | 123W/m² | 113W/m² | 113W/m² | 123W/m² |
| Working Temperature | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C |
| Working Humidity | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% |
| Lifespan | 100,000hours | 100,000hours | 100,000hours | 100,000hours | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Maintenance Mode | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
| Technical Specifications | P1.25 | P1.579 | P1.667 | P1.875 | P2 | P2.5 | P3 | P4 |
| Pixel Pitch | 1.25mm | 1.579mm | 1.667mm | 1.875mm | 2mm | 2.5mm | 3mm | 4mm |
| Pixel Configuration | SMD1010 | SMD1010 | SMD1010 | SMD1515 | SMD1515 | SMD2020 | SMD2020 | SMD2020 |
| Module Size | 240*120mm | 240*120mm | 240*120mm | 240*120mm | 240*120mm | 240*120mm | 240*120mm | 240*120mm |
| Module Resolution | 192*96dots | 152*76dots | 144*72dots | 128*64dots | 120*60dots | 96*48dots | 80*40dots | 60*30dots |
| Pixel Resolution | 640,000dots/m2 | 401,111dots/m2 | 360,000dots/m2 | 284,444dots/m2 | 250,000dots/m2 | 160,000dots/m2 | 111,111dots/m2 | 62,500dots/m2 |
| Cabinet Size | Customized | Customized | Customized | Customized | Customized | Customized | Customized | Customized |
| Weight/sqm | 28kg | 28kg | 28kg | 28kg | 28kg | 28kg | 28kg | 28kg |
| Average Comfortable Viewing Distance | 1m | 1.5m | 1.6m | 3.23m | 3.44m | 4.3m | 5.16m | 6.88m |
| Brightness | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 | 600-800cd/m2 |
| View Angle | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) | 160°(W) 140°(H) |
| Refresh Rate | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥3，840HZ | ≥1,920HZ |
| Input Voltage | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% | AC90v-264V±10% |
| Max.power Consumption | ≤552W/m² | ≤380W/m² | ≤380W/m² | ≤431W/m² | ≤431W/m² | ≤380W/m² | ≤396W/m² | ≤431W/m² |
| Avg. Power Consumption | 157W/m² | 108W/m² | 108W/m² | 123W/m² | 123W/m² | 113W/m² | 113W/m² | 123W/m² |
| Working Temperature | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C |
| Working Humidity | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% | 10%-95% |
| Lifespan | 100,000hours | 100,000hours | 100,000hours | 100,000hours | 100,000hours | 100,000hours | 100,000hours | 100,000hours |
| Maintenance Mode | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear | Front/Rear |
