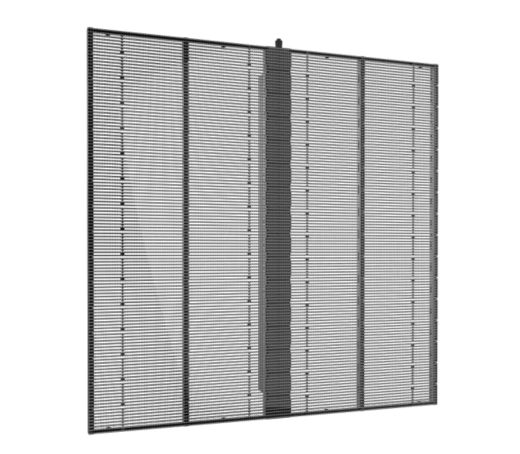

Transparent LED screen
Cabinet sizes – 1000 x 1000mm | 1000 x 500mm | 500 x 500mm | Can be customized
Transparency up to 75%
Brightness – 1500 cd/m² | 5500 cd/m²
Viewing angle 160 °
Pixel Pitch: 2.6-6.25mm/ 2.6-5.2mm/ 3.9 x 7.8mm
Get A Quotation

Cabinet sizes – 1000 x 1000mm | 1000 x 500mm | 500 x 500mm | Can be customized
Transparency up to 75%
Brightness – 1500 cd/m² | 5500 cd/m²
Viewing angle 160 °
Pixel Pitch: 2.6-6.25mm/ 2.6-5.2mm/ 3.9 x 7.8mm
Get A QuotationCable-less splicing
Ultra Thin ≤ 70 mm
Ultra Light ≤ 0.5kg /Module
High Quality: Anti-collion, waterproof.
Traditional LED window screens act as a dark wall, so shoppers can’t see in, and they block sunlight, so the indoor areas need to rely on unnatural lighting. The Transparent LED display allow people by both sides of the display can see each other.
The Explorerled's Transparent LED display with brightness range from 800nits to 5500nits, the Transparent LED Screens are visible for both indoor and outdoor daylight from a great distance.
The naked-eye 3D technology makes the LED display effect of the 3D model extremely excellent. Make the picture and video more vivid and real, and bring a strong sense of experience and interest.
To improve the applicability of our LED display for various occasions,we find scientific cabinet sizes of 500x500mm & 500mm*1000mm & 1000mm*1000mm.
Through creative combination, we can achieve seamless splicing into one screen so as to get any size freely accodring to the different needs of places.
Sizes for options: Sizes for options: 500mm*500mm / 500mm*1000mm / 1000mm*1000mm / can customised the sizes & shapes
ExplorerLED's Transparent LED Wall creates a stunning visual effect for the concert stage. Unique display effects, special lighting design, and creative animation special effects allow the audience to enter the carnival music world.
| Technical Specifications | P2.6-5.2 | P2.6-6.25 | P3.9-7.81 |
| Pixel Pitch | 2.6-5.2mm | 2.6-6.25mm | 3.91-7.81mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 |
| Module Size | 500*125mm | 500*125mm | 500*125mm |
| Module Resolution | 187*44dots | 192*40dots | 128*16dots |
| Pixel Resolution | 65,824dots/m2 | 61,440dots/m2 | 32,768dots/m2 |
| Cabinet Size | W1000*H500*D70mm
W1000*H1000*D70mm |
W1000*H500*D70mm
W1000*H1000*D70mm |
W1000*H500*D70mm
W1000*H1000*D70mm |
| Cabinet Weight | 8kg | 8kg | 8kg |
| Average Comfortable Viewing Distance | 3m | 3m | 4m |
| Brightness | 1000-5500cd/m2 | 1000-5500cd/m2 | 1000-5500cd/m2 |
| View Angle | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) |
| Refresh Rate | ≥3,840HZ | ≥3,840HZ | ≥3,840HZ |
| Input Voltage | AC110v-260V±10% | AC110v-260V±10% | AC110v-260V±10% |
| Max. power Consumption | ≤600W/m² | ≤600W/m² | ≤600W/m² |
| Avg. Power Consumption | 130W/m² | 130W/m² | 130W/m² |
| Working Temperature | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C |
| Transparency | 65% | 65% | 75% |
| Lifespan | 100,000hours | 100,000hours | 100,000hours |
| Maintenance Mode | Front/Rear | Front/Rear | Front/Rear |
| Technical Specifications | P2.6-5.2 | P2.6-6.25 | P3.9-7.81 |
| Pixel Pitch | 2.6-5.2mm | 2.6-6.25mm | 3.91-7.81mm |
| Pixel Configuration | SMD1921 | SMD1921 | SMD1921 |
| Module Size | 500*125mm | 500*125mm | 500*125mm |
| Module Resolution | 187*44dots | 192*40dots | 128*16dots |
| Pixel Resolution | 65,824dots/m2 | 61,440dots/m2 | 32,768dots/m2 |
| Cabinet Size | W1000*H500*D70mm
W1000*H1000*D70mm |
W1000*H500*D70mm
W1000*H1000*D70mm |
W1000*H500*D70mm
W1000*H1000*D70mm |
| Cabinet Weight | 8kg | 8kg | 8kg |
| Average Comfortable Viewing Distance | 3m | 3m | 4m |
| Brightness | 1000-5500cd/m2 | 1000-5500cd/m2 | 1000-5500cd/m2 |
| View Angle | 160°(W) 120°(H) | 160°(W) 120°(H) | 160°(W) 120°(H) |
| Refresh Rate | ≥3,840HZ | ≥3,840HZ | ≥3,840HZ |
| Input Voltage | AC110v-260V±10% | AC110v-260V±10% | AC110v-260V±10% |
| Max. power Consumption | ≤600W/m² | ≤600W/m² | ≤600W/m² |
| Avg. Power Consumption | 130W/m² | 130W/m² | 130W/m² |
| Working Temperature | -20°C~+50°C | -20°C~+50°C | -20°C~+50°C |
| Storage Temperature | -30°C~+60°C | -30°C~+60°C | -30°C~+60°C |
| Transparency | 65% | 65% | 75% |
| Lifespan | 100,000hours | 100,000hours | 100,000hours |
| Maintenance Mode | Front/Rear | Front/Rear | Front/Rear |
